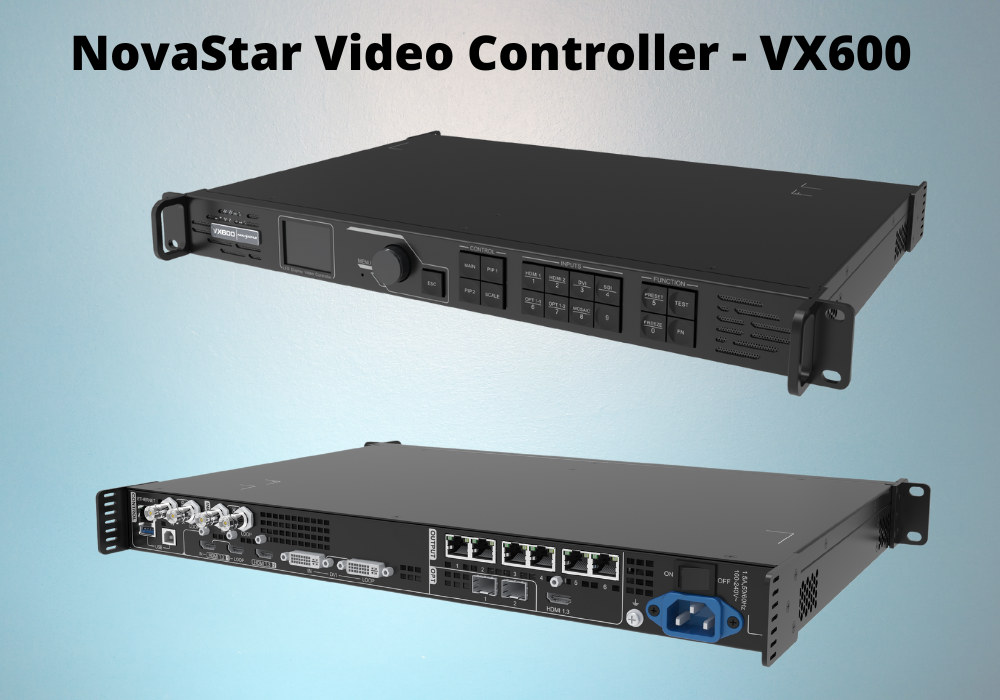

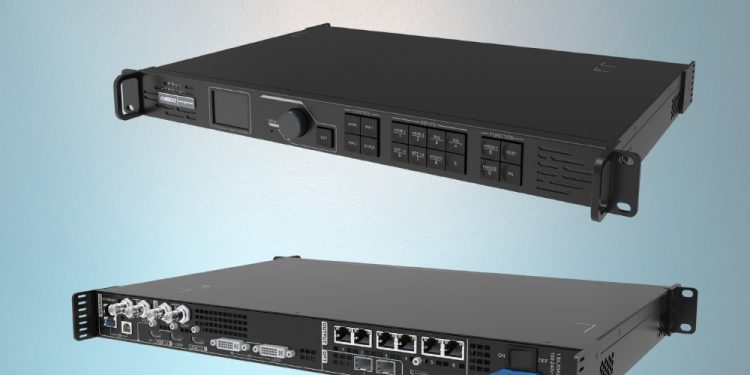

The VX600 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screens. The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

Advanced Features
• Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.

• 3.9 million loading capacity
6x Gigabit Ethernet ports. A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels. 2x Fiber outputs OPT 1 copies the output on 6 Ethernet ports. OPT 2 copies or backs up the output on 6 Ethernet ports.

• Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.

• Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
