Capturing a flawless video backdrop in modern broadcasting, corporate boardrooms, and virtual production studios is crucial. Yet many production teams face a frustrating optical defect when a video recording is ruined by wavy, distorted interference lines across the background.
This visual artifact is known as the screen moiré effect. It severely degrades picture quality on camera even when the display looks perfect to human eyes. As studio demand grows, buyers wonder whether Chip-on-Board (COB) technology can solve this headache.
What is the Moiré Effect on LED Displays?
The moiré effect is an optical interference pattern that occurs when two repetitive patterns interact. In LED displays, one pattern comes from the LED pixel array, while the other comes from the camera sensor. In video production, one repetitive pattern is the physical pixel structure of the display, while the second grid is the pixel layout of the camera sensor. This optical phenomenon can produce wavy lines, ripples, shimmering patterns, or false color artifacts in recorded footage.
This artifact commonly appears when a camera captures the fine pixel structure of an LED display and the sensor sampling frequency interacts with the display’s pixel pattern. What makes this issue particularly tricky is that the video display may look sharp and uniform to human viewers in person, yet look severely distorted through the camera lens. The pattern occurs when the spacing of the LED pixels aligns unfavorably with the camera sensor, producing an aliasing effect.
Why Traditional SMD Packaging Fails on Camera
To understand why screen distortion happens, buyers must examine display hardware design. The moire effect in video capture occurs at the sensor level. Digital camera sensors capture images through an array of pixels. When a camera points at an LED display, the sensor grid overlaps directly with the physical matrix of the screen.
Traditional Surface Mounted Diode (SMD) packaging relies on discrete light points. In an SMD panel, individual diodes are mounted onto the board surface with noticeable black borders between each pixel. These distinct light sources create a strong spatial frequency pattern.
When professional cinema or broadcast cameras zoom, pan, or tilt, these discrete points of light accentuate spatial frequency interference. The camera sensor fails to sample the high-contrast light grid smoothly, triggering a severe screen moire effect in recorded video.
How Can COB LED Displays Help Reduce Screen Moire Effect?
Chip-on-Board (COB) technology changes how diodes interact with camera optics. In a COB display, bare LED chips are mounted directly onto the circuit board substrate and sealed under an integrated protective surface layer.
This surface encapsulation creates a more uniform light-emitting surface, making individual pixel boundaries less noticeable to cameras. By smoothing out physical pixel boundaries, COB technology helps mitigate led moire through several structural advantages:
- Finer pixel pitch options: COB manufacturing easily achieves micro-pitch spacing, significantly below one millimeter
- Higher pixel density: Increasing pixel density per square meter reduces spatial frequency mismatches with camera sensors
- Reduced visible gaps: Integrated surface resin fills the space between pixels, eliminating high-contrast black borders
- Smoother light distribution: Diodes emit light through a continuous protective layer, creating soft surface luminescence instead of harsh point sources
- Superior image continuity: Even at close shooting distances, the screen maintains unified imagery without revealing pixel grids
These structural characteristics help reduce the likelihood and visibility of moiré artifacts, especially when compared with conventional SMD displays.
How COB Delivers Better On-Camera Performance
Compared with conventional SMD displays, COB technology provides a smoother and more uniform light-emitting surface, making it less susceptible to visible moiré artifacts during filming. Ultra-fine pixel pitches, reduced pixel boundaries, and improved light uniformity all contribute to cleaner on-camera images in broadcast, XR, and virtual production environments.
While COB technology significantly reduces the likelihood of moiré, the final result also depends on factors such as camera resolution, lens selection, shooting distance, viewing angle, and display content. Combining the right display technology with proper camera setup delivers the best overall performance.
How to Maximize Moiré Reduction in Camera Applications
To achieve the best on-camera performance, buyers should consider not only display technology but also overall system design. The following factors help maximize the moiré reduction benefits of COB LED displays:
- Pixel pitch selection: Choose a fine pixel pitch that matches your closest camera shooting distance to keep pixel structures invisible
- High refresh rate: Ensure the display supports high refresh rates to eliminate scan lines and image flickering during video capture
- Display colour uniformity: Select panels with strong brightness and color consistency across all viewing angles to keep images stable on camera
- Studio viewing distance planning: Calculate camera placement early in the design phase to match screen resolution with lens focal lengths
- On-site camera testing: Test candidate display panels using your actual studio cameras, lenses, and planned shooting angles prior to final purchase.
A successful implementation depends on matching display hardware to specific studio filming requirements.
LEDMAN COB Displays for Camera-Friendly Applications
As one of the earliest pioneers of COB LED display technology, LEDMAN has been advancing COB innovation for more than a decade. With over 20 years of experience in the LED display industry and a portfolio of more than 1,200 patents, the company continues to drive advancements in COB packaging, Micro LED technology, and ultra-high-definition display solutions.
Today, LEDMAN‘s LED display products are deployed in more than 120 countries and regions, serving broadcast studios, virtual production stages, command centers, sports venues, corporate environments, and other professional applications worldwide. This extensive global project experience enables the company to deliver display solutions that meet the demanding requirements of camera-facing environments.

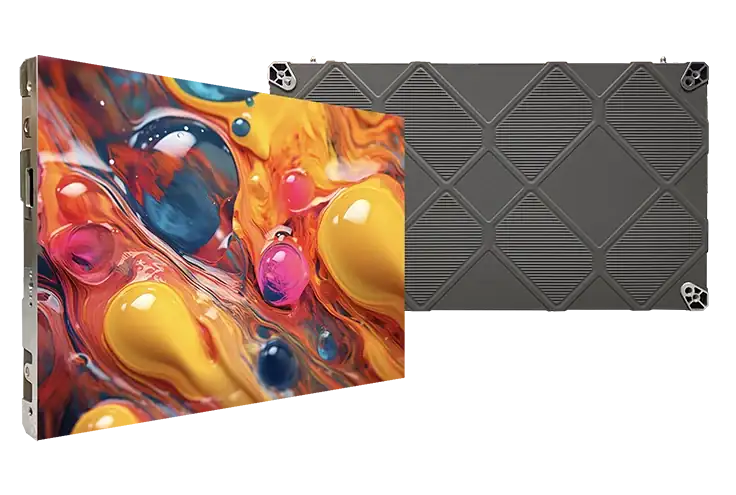

Designed for professional filming applications, LEDMAN’s COB LED displays combine ultra-fine pixel pitches, integrated surface encapsulation, and high refresh rates to create a smoother, more uniform light-emitting surface. Compared with conventional SMD displays, these structural advantages help reduce visible pixel boundaries and minimize the likelihood of moiré artifacts, delivering cleaner and more stable on-camera images.
Beyond display hardware, LEDMAN works closely with customers throughout the entire project lifecycle—from display selection and system design to installation planning and on-site optimization. By combining years of COB expertise with application-driven engineering, LEDMAN helps customers achieve reliable, camera-friendly visual performance for both live broadcasting and recorded productions.
