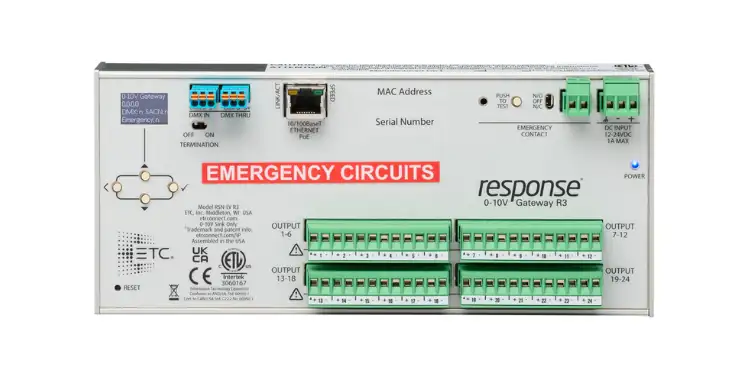

ETC is proud to announce the launch of the Response 0-10V Gateway R3, the latest evolution in its trusted line of power control solutions. Designed for both retrofit and new installations, the R3 model brings enhanced electrical isolation to all 24 of its 0-10V sink control channels.
The DIN rail mounted Response 0-10V Gateway R3 accepts both sACN and DMX control inputs and is UL 924 listed for use with 0-10 V UL 924 listed Directly Controlled Emergency Luminaires (DCELs). With flexible configuration options, customizable dimming curves, and intuitive control via ETC’s Concert software or onboard interface, the Gateway R3 is a powerful tool that offers precision and reliability.
Key Features:
• 24 Channels of 0-10V Sink Control: Now with enhanced isolation for each channel, ensuring safe and stable operation.
• Emergency Lighting Ready: UL 924 listed with a contact closure input and “Push to Test” button for easy emergency look verification.
• Flexible Control Protocols: Accepts both sACN and DMX inputs, with user-defined signal precedence.
• Custom Dimming Curves: Choose from a library of pre-programmed curves or create your own for precise lighting control.
• DIN Rail Mounting: Easily integrates into standard DIN rail enclosures for streamlined installation.
